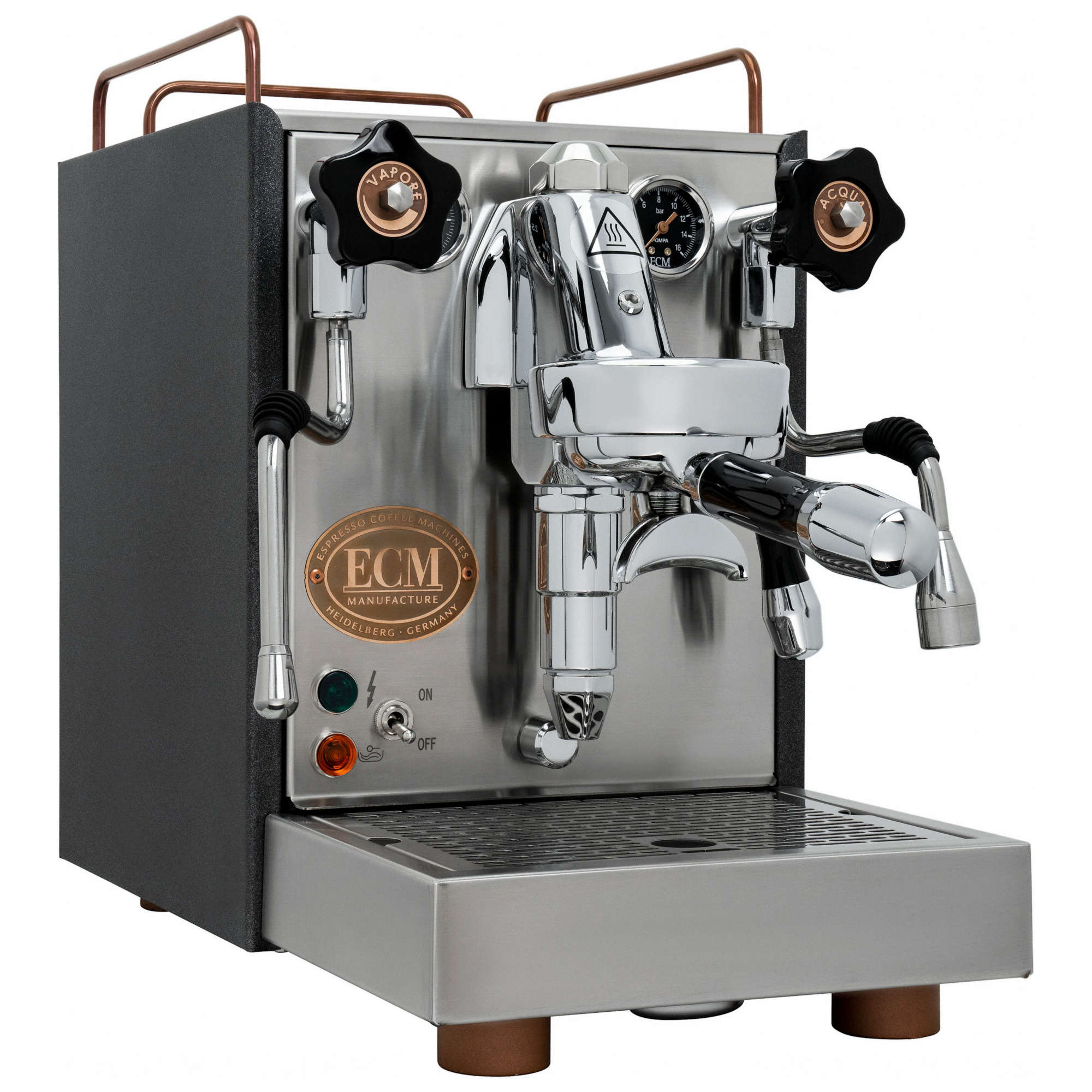

ECM MECHANIKA SLIM - HERITAGE EDITION
The Mechanika VI Slim Heritage Edition boasts an elevated aesthetic incorporating satin-finished stainless steel, anthracite bodywork, and bronze accents.
This premium machine features satin-finished front panel and sleek anthracite housing. The aesthetic is elevated by striking bronze accents on the valves, pressure gauges, emblem, cup warmer rail, and feet of the machine.
OVERVIEW
Cafe quality espresso coffee brewing in a compact format - Mechanika Slim features the ECM e61 lever operated brewing group. Commercial quality in your home or office.
Powerful steam - 1.9L stainless steel boiler delivers strong dry steam - perfect for creating your favourite cafe style espresso drinks.
Steam milk while brewing coffee - heavy duty 1.9L stainless steel boiler allows you to draw steam or water from the boiler while brewing fresh espresso.
User adjustable over-pressure valve.
High-end ECM developed e61 brewing group with stainless steel upper chamber insert to reduce scale buildup.
Durable stainless exterior - heavy duty polished stainless exterior make for an attractive, durable, and long lasting machine.
Very compact design - not much larger than a single boiler espresso machine yet with full commercial functionality.
PID temperature control with three temperature selections (Low / Medium / High).
New Version - Featuring pump pre-infusion, temperature adjustment, economy (power saving) mode.
Developed and built by ECM Germany in their Italian factory. Regarded as being one of the best manufacturers due to the faultless finish, attention to detail, and performance.
CRAFT BEAUTIFUL ESPRESSO
High-end ECM e61 espresso brewing group
Designed by Faema in 1961, the e61 brewing group remains the industry standard for commercial coffee. ECMs own interpretation of this iconic brewing group delivers the function and temperature stability to craft stunning espresso.
Commercial filter holders - single and double
Full size heavy duty chromed brass commercial filter holders allow you to extract espresso just like the professionals. Mechanika Slim includes both a single filter holder and double filter holder finished with high gloss black plastic handles and metal ends.

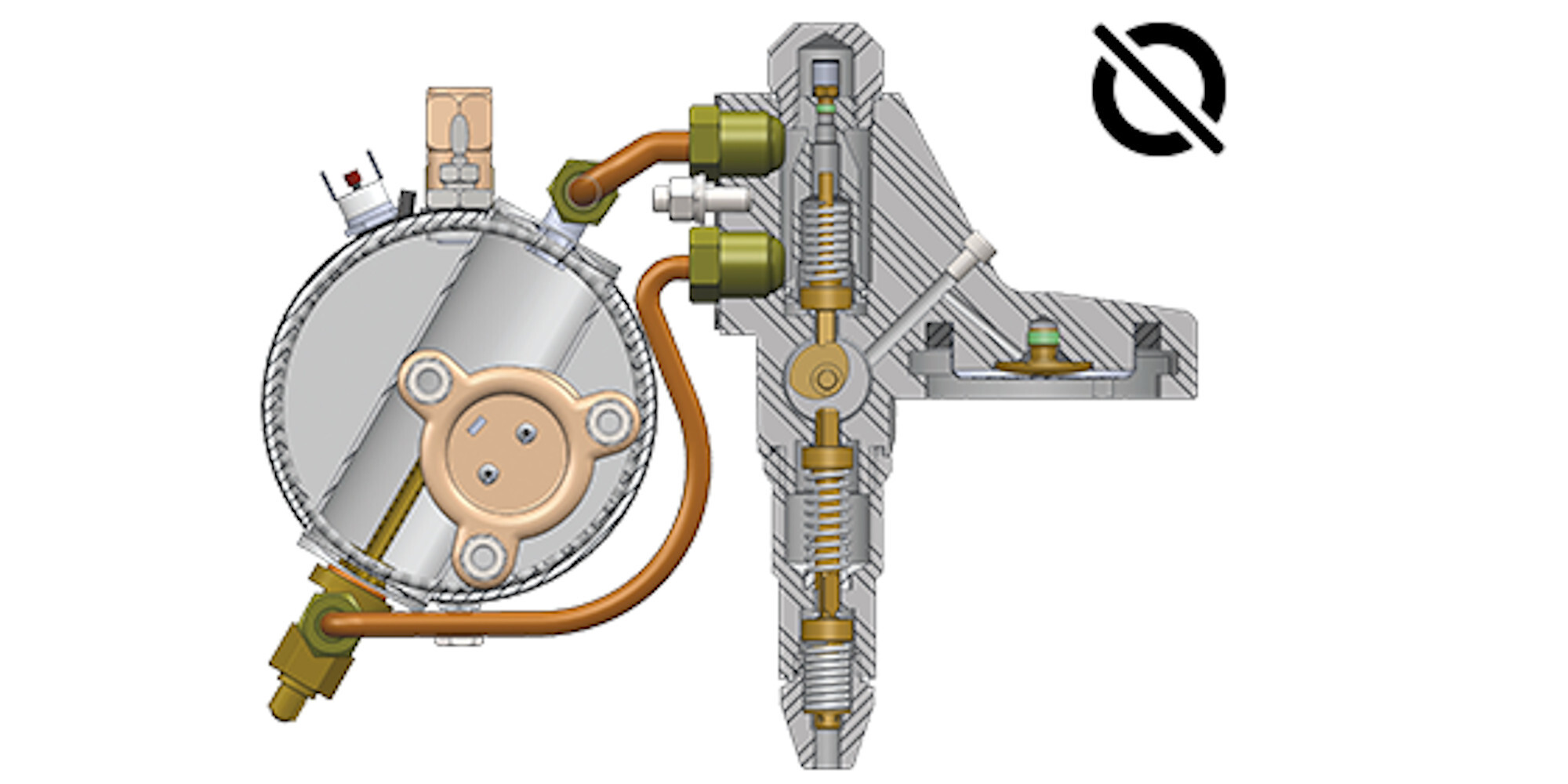

Heat Exchanger boiler delivers hot fresh brewing water at just the right temperature
Fresh water for brewing espresso is delivered via the heat exchanger where it is flash heated before delivery to the brewing group.
Excellent thermal stability
Heavy duty stainless steel boiler with heat-exchanger circulation system on the Mechanik Slim keeps the brewing system at the ideal brewing temperature. At idle heated water is circulated through the brewing system from the heat exchanger towards the brewing group - this transfers heat from the boiler to the brew group to maintain the correct brew temperature. When brewing coffee, fresh water is introduced to the heat-exchanger which displaces already heated water through the brewing group and into your espresso.
Digital PID temperature control delivers stable brew temperature
Heating of the boiler is controlled by a digital temperature controller - this system constantly switches the heating system to maintain consistent and stable brew water temperature. This system improves espresso consistency by eliminating brewing at too high or too low temperature - for more consistent and better tasting espresso.
Set the right temperature to suit your coffee
Brew and boiler temperature can be adjusted across three settings (Low, Medium, High) to suit your taste and the coffee you are using. Many specialty coffees are best extracted at a particular temperature - generally medium roast coffe is extracted at 88 to 92 degrees celcius, with darker roast being extracted at lower temperatures, and lighter roast being extracted at higher temperatures. You can adjust the brew temperature as per the coffee suppliers guidance, or experiment yourself. Or just leave it on the factory setting - you will still make amazing espresso.
Quality 15 bar vibration pump
Industry standard 15 bar vibration pump delivers pressurised water to the brewing system.
Adjustable Over Pressure Valve (OPV)
You can adjust the brew pressure. Brew pressure can be adjusted without opening the machine - the adjustment is located on the top of the machine under the cup tray.
STEAM MILK LIKE THE PROFESSIONALS
Professional quality steam for cafe quality milk
Steam is delivered from a generous 1.9L stainless steel insulated boiler.
Powerful steam - always ready to go
Ready at a moments notice - steam is always available (when the machine is at operating temperature) to help you create delicious velvety steamed milk for your favourite cappuccinos, lattes, and flat whites.
Steam milk while brewing coffee
Stainless steel boiler with heat exchange system allows you to draw steam or water from the boiler while brewing espresso. This is the same proven system used on high-end commercial espresso coffee machines.

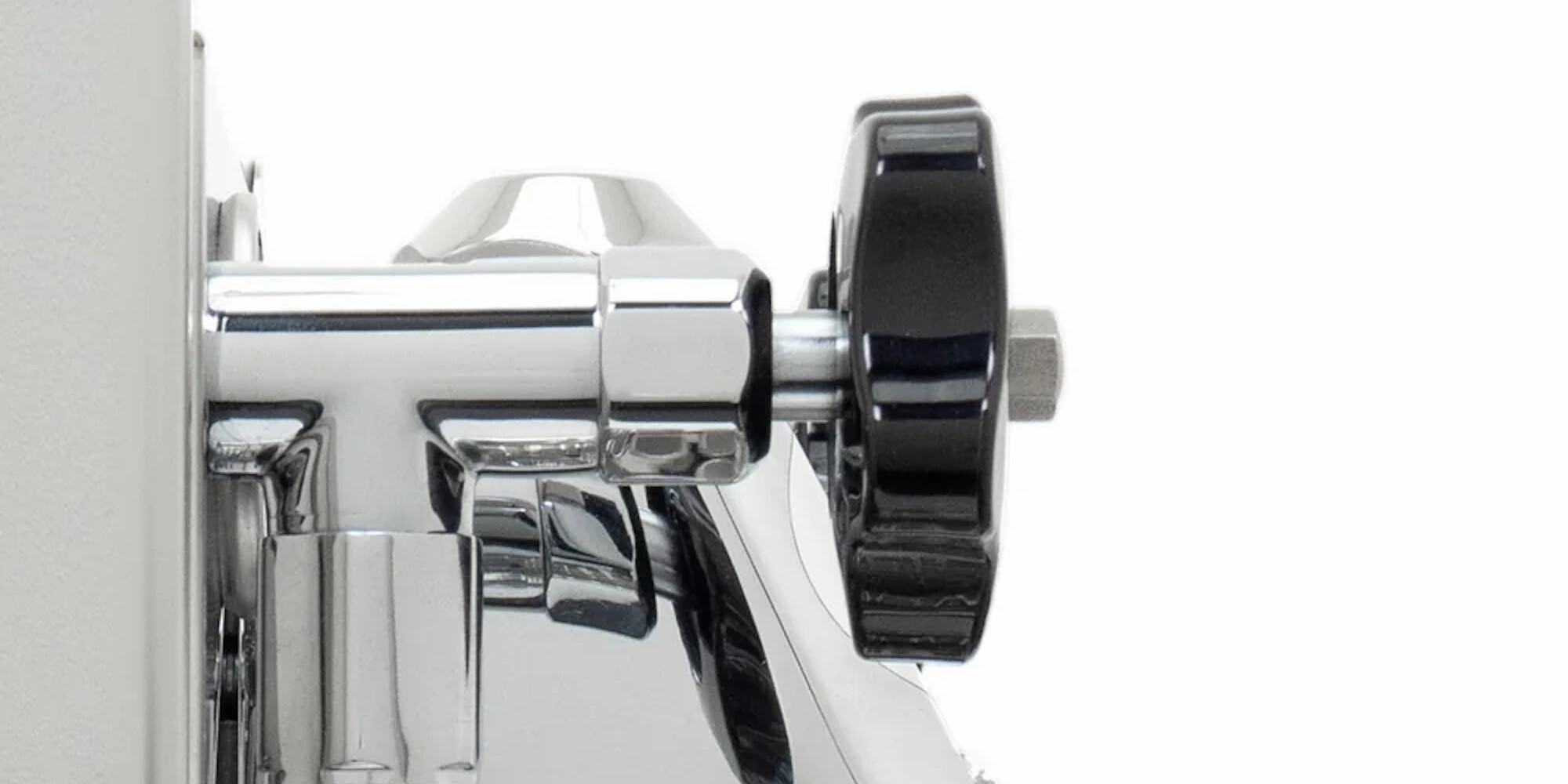

Rotary taps
Easy and intuitive to use - open the tap to start the steam. Tap stays open so you can position the milk jug with both hands.
Steam arm with ball-joint connection - position to suit your style
Ball joint steam arm connection makes it easy to position your steam arm to suit your milk steaming technique - steam arm position is adjustable through 3 axis of movement. Position the steam tip back over the drip tray to purge after each use.
Insulated steam arm with "cool-touch" technology - easier to clean
"Cool-touch" technology helps to improve steam power while making the steam arm easier to clean. The steam arm is lined with a teflon tube to deliver maximum heat energy into the milk and minimise heating of the steam arm itself. Milk is less likely to stick to the steam arm - simply wipe it clean with a damp cloth.
Change steam outlet to suit your needs
A range of original ECM steam arm tips are available to suit diffeent milk frothing requirements - these are not included with your Mechanika Slim but are available as separate accessories.
GREAT FUNCTION AND EASE OF USE
Generous 2.8L internal water tank
Generous water tank allows for plenty of use between refilling. Large open water tank can be removed for filling or filled directly in a pour-over fashion. Tank supply delivers the flexibility of being able to easily relocate your machine.
94mm cup clearance
Filter holder outlets are 94mm above the drip tray allowing clearance for a range of cups and mugs. Upgrade to a bottomless filter holder for even more cup clearance.
Cleaning and maintenance
Brewing system can be back flushed the same as a commercial espresso machine. Regular back flush cleaning of the brewing system is recommended to remove coffee residue and maintain beautiful tasting espresso.
STYLISH DESIGN WITH QUALITY CONSTRUCTION
Stainless steel construction
Chassis and exterior are all constructed from stainless steel for a durable, long lasting, and desirable machine.
High quality fit and finish
Exceptional craftsmanship and attention to detail.
HERITAGE EDITION FEATURES
Anthracite Exterior
Dark matte grey anthracite exterior housing.
Brushed Satin Finish
Brushed Satin Finish for the drip tray, front panel, and top of the machine.
Special Heritage Edition Gauges
Black gauges with bronze indicator needle.
Bronze accents
Bronze cup rails. Bronze tap inserts. Bronze feet.
FEATURES AND DETAILS
High-end ECM e61 brewing group
ECMs own interpretation of the e61 brewing group - featuring stainless steel upper chamber insert to resist mineral and scale buildup
Professional quality taps
Rotary taps with soft close fuction.
Professional quality insulated steam arm
Steam is managed through an Insulated "Cool-touch" steam arm - this delivers more steam power to the milk while making the steam arm easier to clean.
Dual Circuit Heat Exchanger - Steam milk and brew coffee at the same time
Heat exchanger boiler setup allows brewing of espresso and steaming of milk at the same time. The boiler delivers steam at over 100 degrees - while fresh water for brewing espresso is delivered via the heat exchanger.
PID temperature control
Mechanika Slim uses a PID temperature control system to maintain a stable boiler temperature. PID temperature controller aims to maintain temperature within +/- 1 degrees celcius for super stable performance.
3 Temperature settings
The switch below the right hand side of the machine drip tray allows you to select Low, Medium, and High.
Insulated stainless steel boiler
Boiler is constructed from stainless steel and wrapped in a insulating sleeve to maximise thermal stability and ensure brew water is delivered at just the right temperature.
2.8L water tank with easy access
2.8L water tank is enough for a large number of coffees, so you won't be filling it up every day. Water tank can be removed for filling or filled in place.
Elevated ECM Heritage finish
Quality craftsmanship is evident in the fit, finish, detailing, and materials used to assemble the ECM Mechanika Slim.
ABOUT ECM MANUFACTURE
Espresso Coffee Machines Manufacture (ECM Manufacture) began producing espresso coffee machines in 1996 with the first version of the ECM TECHNIKA. The vision of ECM was to create professional style heat-exchanger espresso coffee machines for the upscale household. The Hauck family founded ECM after a long history as an importer and distributor of coffee machinery from a range of Italian brands such as Gaggia, Cimbali, Pavoni, Quick, and Vibiemme.
A family business - the Hauck family are passionately involved in the design and development of the ECM range - designed and developed in Germany - with manufacturing spread across facilities in Germany and Italy.
ECM are renowned for producing premium quality espresso machines and grinders - with a focus on technical innovation to improve how the machines function for you the barista; and quality craftsmanship to make the coffee machines look great in your kitchen.
TECHNICAL DETAILS AND SPECIFICATIONS
Very compact footprint - ideal for apartments and small kitchens
Commercial e61 brewing group 4.5kg for cafe quality espresso coffee
ECM e61 brewing group with stainless steel insert to resist scale build-up
Commercial steam arm - ball joint - 3 axis of movement
Insulated steam arm delivers more power to the milk + easier to clean
Quality ECM rotary steam and water taps
Steam milk while brewing coffee
1.9L insulated stainless steel boiler with heat exchanger 1400 W
2 Cup 58mm commercial filter holder
1 Cup 58mm commercial filter holder
Hot water outlet
Well designed drip tray - slides out easily for removal and cleaning
OPV - Over Pressure Valve
User adjustable brew pressure adjustment
2.8L removable water tank
Water tank supply only
15Bar Vibration pump
Dimensions: 250mm [w] x 445mm (550 with filter-holder) [d] x 395mm [h]
Weight: 20.2 kg
Heating time from cold: ~ 20 minutes
Power: 1400W - 220V -240V
12 month warranty
Made in Italy
Matte Grey Anthracite Exterior
Bronze Vintage Style Accents
WHATS INCLUDED
ECM Mechanika Slim Espresso Coffee Machine
2 Cup 58mm commercial filter-holder
1 Cup 58mm commercial filter-holder
2 Cup coffee filter basket
1 Cup coffee filter basket
Blank coffee filter basket for cleaning
Metal 58mm coffee tamper
Cleaning Brush
User manual
